Product Description:
This professional HDMI over fiber extender is an ideal solution for industries requiring stable, high-resolution video transmission, including broadcast media, corporate video conferencing, medical diagnostics, education livestreaming, and 24/7 surveillance systems. With full HDMI 2.0 support and resolutions up to 4K@60Hz, this HDMI 4K extender ensures ultra-low latency and uncompressed image quality over LC single-mode fiber. Built for long-distance runs up to 10KM, this HDMI extender 4K 60Hz delivers consistent and real-time performance, making it the go-to choice for AV engineers looking for a robust and future-ready 2.0 HDMI extender for demanding environments.
Key Features:
- Achieves 18Gbps bandwidth for seamless high-speed video data transmission—ideal for HDMI 4K extender applications.
- Equipped with LED indicators for real-time status monitoring and diagnostics.

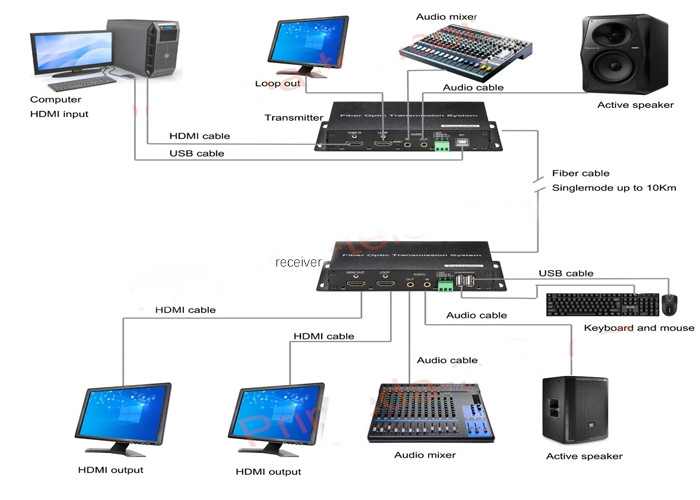

- The transmitter features a loop-out port (shared local signal) and external audio embedding for flexible signal integration.
- The receiver supports backup video output and audio de-embedding, enhancing system reliability.
- Supports long-distance optical transmission up to 10KM over LC single-mode fiber, ideal for HDMI extender over fiber optical deployments.
- Provides audio embedding and de-embedding functions, making it suitable for professional AV and broadcasting setups.
- Supports WDM (Wavelength Division Multiplexing) with 4-channel/8-channel single-fiber transmission, maximizing fiber efficiency.
Technical Parameters:
| Video | Supported Protocol | HDMI 2.0b |
| Video Bandwidth | 18Gbps |
| HDCP | HDCP 2.2 |
| Interface Bandwidth | 18Gbps |
| Color Depth | RGB4:4:4 8-bit downward compatible |
| Video Color Space | RGB4:4:4, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Interface | HDMI-A interface |
| Impedance | 100Ω |
| Suggested Maximum HDMI Cable Input/Output Distance | Less than 10M. When the resolution is above 1920×1080@60Hz,it can reach 30M when using a cable with equalization. |
| Audio | Audio Mode | Stereo |
| Audio Interface | 3.5mm stereo audio socket |
| Audio Signal Type | Audio embedding and de-embedding |
| RS232 | Interface | Phoenix Terminal |
| Signal Direction | Bidirectional Transmission |
| Baud Rate | Default 38400bps, can be manually selected from 600-115200bps |
| IR | IR Frequency | 38KHz |
| Optical Fiber | Optical Fiber Interface | LC Interface |
| Optical Fiber Type | Single -Mode |
| Wavelength | TX1330/RX1270nm；TX1270nm/RX1330nm |
| Interface Bandwidth | 10G |
| Suggested Maximum Transmission Distance | Single-Mode Optical Fiber:10km |
| Other | Power Supply | Single -circuit:DC 12V/1A |
| Maximum Power Consumption | Without KVM:max 4W;With KVM:max 6W |
| Operating Temperature | 0°~40°C/32°F~104°F |
| Humidity | 20~90% RH(No Condensation) |
| Storage Temperature | -20°~60°C/-4°F~104°F |
| Operating Time | 7*24 hours |
Applications:
Engineered for demanding AV environments, this HDMI extender 4K 60Hz over fiber provides reliable and lossless 4K video and audio transmission across long distances. Its robust performance makes it ideal for professional applications where clarity, stability, and control are critical.
Typical Use Cases Include:
- Live broadcast and media production
- Corporate and government video conferencing
- Surgical imaging and medical demonstrations
- Online education and classroom recording
- Large-scale command centers and monitoring rooms
- Immersive projection and LED display systems
- Rail transit and smart transportation hubs
- 24/7 video surveillance and security control
