LCD Video Wall Controller – Seamless Multi-Screen Display, Real-Time Signal Switching

Name: LCD Video Wall Controller Seamless MultiScreen Display RealTime Signal Switching
Brand: LCD Video Wall Controller
Price: 1 USD

China LCD Video Wall Controller – Seamless Multi-Screen Display, Real-Time Signal Switching wholesale

Brand Name : LCD Video Wall Controller

Model Number : WLRS-TW12

Place of Origin : Mainland China

Certification : CE,FCC and RoHs

MOQ : 1pcs

Price : Negotiable

Packaging Details : Carton box and standard export package

Delivery Time : 2-3 days

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per week

Display Resolution : 1920x1080

Viewing Angle : 178°

Control Method : Remote Control/RS232

Switching Speed : 200 ns (maximum time)

Output Signal : HDMI/VGA/AV/YPbPr/USB

Name : LCD Video Wall Controller

Input Signal : HDMI/VGA/AV/YPbPr/USB

Wall Modes : 2x2 ,2x3,3x2,4x1,4x2,3x3,etc,

Contact Now

Product Description:

The LCD Video Wall Controller is a core device designed to manage multiple LCD screens, transforming them into a large, seamless video wall. It is widely used in surveillance centers, command rooms, corporate meeting spaces, and advertising displays. The LCD Video Wall controller can distribute input video signals to multiple LCD displays, supporting various display modes such as full screen, split screen, zoom, and overlay. With its high-performance image processing capabilities, it ensures crisp and smooth visuals even at high resolutions.

This LCD Video Wall controller enables users to control and manage multiple signal sources via intuitive software, allowing for real-time switching and flexible video wall configuration. It meets the demands of various applications requiring large-scale screen displays.

Technical Parameters:

Input signal
VGA	HD15 interface and link with 1 audio interface of 3.5 Support 640480/85HZ to 19201200/60HZ
HDMI	HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio
Video	Automatic identification the syetem of NTSC,PAL and SECAM,link with 1 audio interface of 3.5
USB	Standard interface of 2.0,can insert U disk,embed audio; Support video,image,MP3,TXT

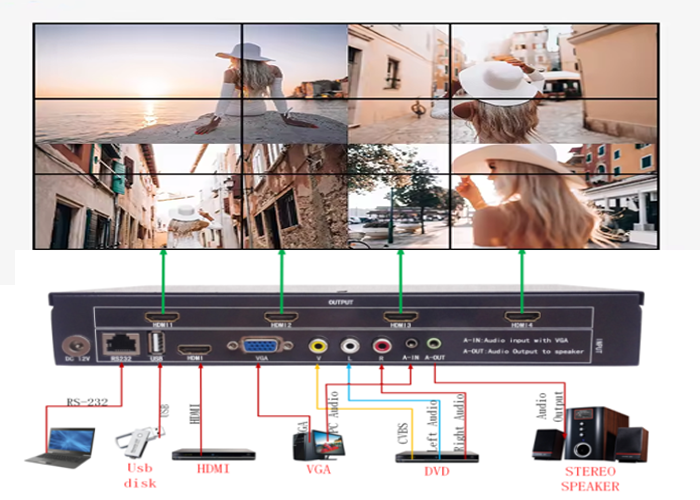

Output signal
HDMI interface	4 HDMI output,support joint pattern of 22,14,41; Support customizing output signal of 2 to 25; 19201080P/60HZ,1280*720,60HZ;
Audio	3.5 Audio interface,support left and right channels and stereo,AV signal switch synchronously
others
Control mode	RS232,Remote ,case key
Power supply	AC: 100 to 240 V
Joint pattern	Quad standard joint,single machine customize joint of 2 to 25
Power	20W
Case size
Dimensions(1U)	1U 19 inch standard crate,442mm(L)45mm(H)242mm(W)
Weight(1U)	2.5KG

Applications:

The LCD Video Wall Controller is suitable for a variety of applications and scenarios, such as:

Trade Shows and Exhibitions: The LCD Video Wall controller can be used to create eye-catching and interactive displays at trade shows and exhibitions, helping to attract and engage potential customers.
Control Rooms and Command Centers: TheLCD Video Wall controller is ideal for control rooms and command centers, where real-time control and monitoring of multiple screens is required.
Conference Rooms: With the LCD Video Wall controller, conference rooms can have a professional and high-definition display, making presentations, meetings, and video conferencing more effective and engaging.
Entertainment Venues: The LCD Video Wall controllercan be used in entertainment venues like cinemas, theaters, and sports arenas, to create a stunning and immersive visual experience for the audience.
Retail Stores: Retail stores can use the VWP to showcase their products and promotions on multiple screens, creating an attractive and dynamic display.
Public Transport: The LCD Video Wall controller can be used in public transport systems, such as airports and train stations, to provide real-time information and updates to passengers on multiple screens.
